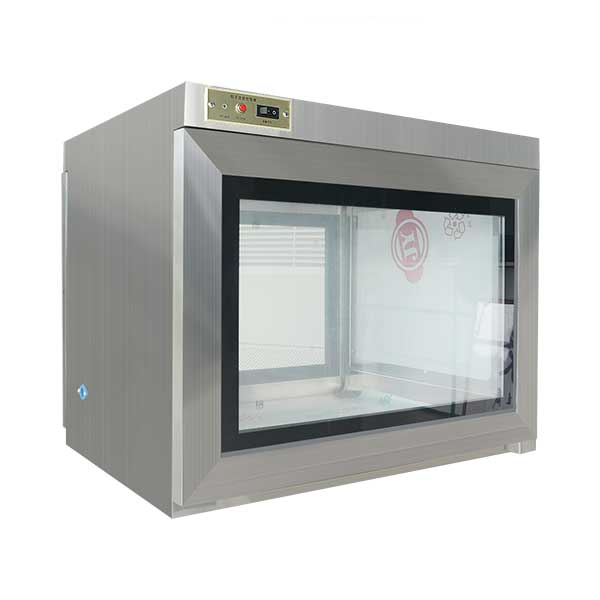

The clean room pass through is for transferring parts and equipment in and out of a cleanroom or controlled environment.They reduce the need for people to enter the cleanroom.The pass through is available in polypropylene or stainless steel construction.Pass Boxes and Transfer Hatches are an effective solution as they allow materials to be transferred into  the controlled environment without actual personnel movement. They may also be used to protect the external environment from agress of contamination, for example,in biological safety laboratory applications.

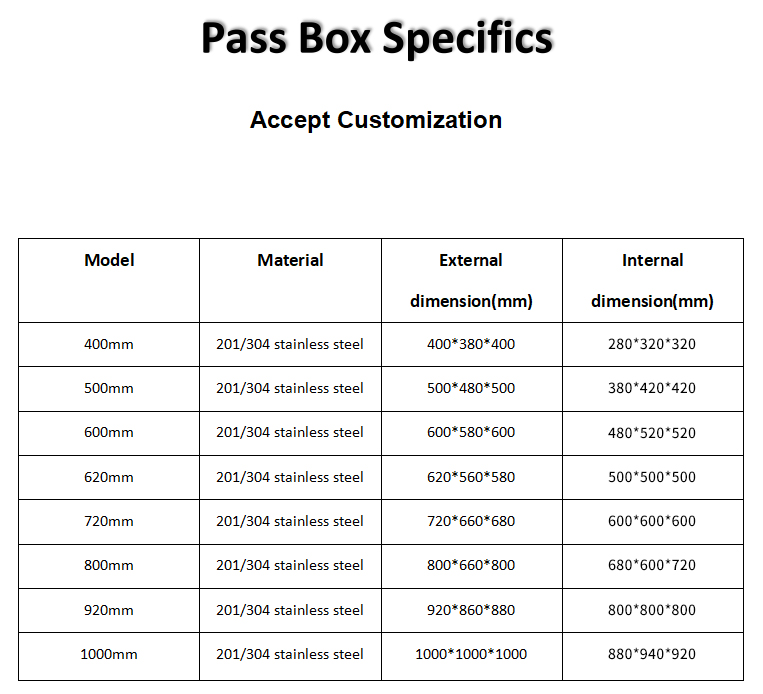

•  Available in a variety of size transfer boxes,they allow ,aterials and parts to move in and out of the cleanroom without contaminating the controlled environment.

•  Mechanical or power door inerlocking systems  prevent cross-contamination by impossible for the front and rear

doors to open at the same time.

•  Sealed using a magnetic seal, excellent sealing performance and beautiful appearance.

•  The pass box are stainless steel, smooth, wear-resistant and corrosion resistant.

•  Mechanical interlock or electronic interlock device ensure the doors on both side could not be opened simultaneously.

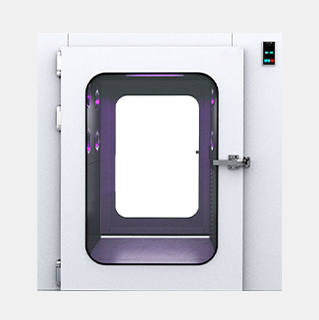

•  Different UV germicidal lamps are optional based on customer requirements.After the installation of the UV lamps,the pass box not only has a filtration function, but also effectively kills bacteria.

Features

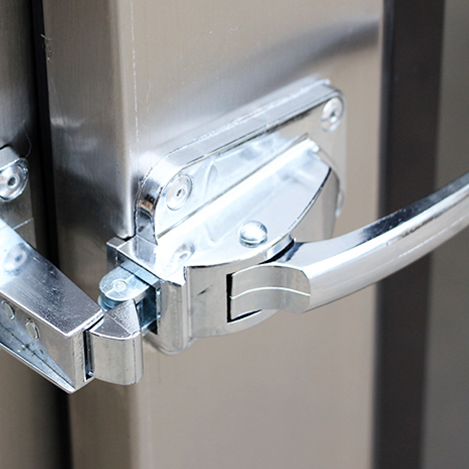

      (1)  Interlock.   High-quality mechanical interlockinglocks with door handles, durable and firm. There are two kinds of electronic interlock and mechanical interlock, which can be applied to different places.

      (2)  Power Cable.   Integrated socket power cord.easy to use and easy to replace.

      (3)  Sterilization Switch.   UV germicidal lamp switch, reusable up to 10,000 times.

      (4)  Internal welding process.   Machine bending, no obvious solder joints, the whole smooth.

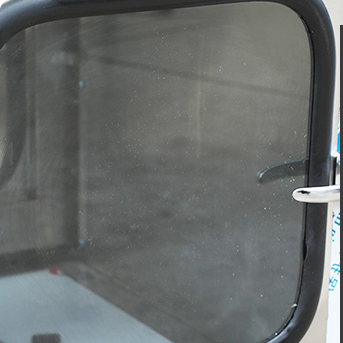

      (5)  A glass window.   Large doubel-sided glass window for better observation of the state of cleaning items.

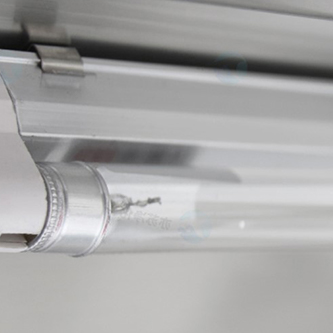

      (6)  UV sterilization lamp.   Built in ultraviolet disinfection lamp can quickly sterilize and disinfect to ensure the cleanliness and tidiness of the transmission.

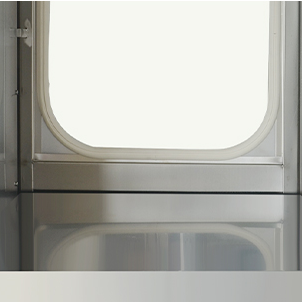

      (7)  Sealing Strip.   Good sealing and elasticity , no deformation after long-term use, preventing air cross-contamination between clean and non-clean areas.

Pass box are widely used in food and beverage, biochemistry, precision instruments, electronics, optoelectronics, microelectronics, optical fiber and

cable, precision machinery, biopharmaceutical, aerospace and many other fields.The company has built a long-term cooprative relations with

some well-known enterprises at home and abroad, such as BYD company, Coca Cola, Foxconn,SAMSUNG and so on.
